Scope of Application

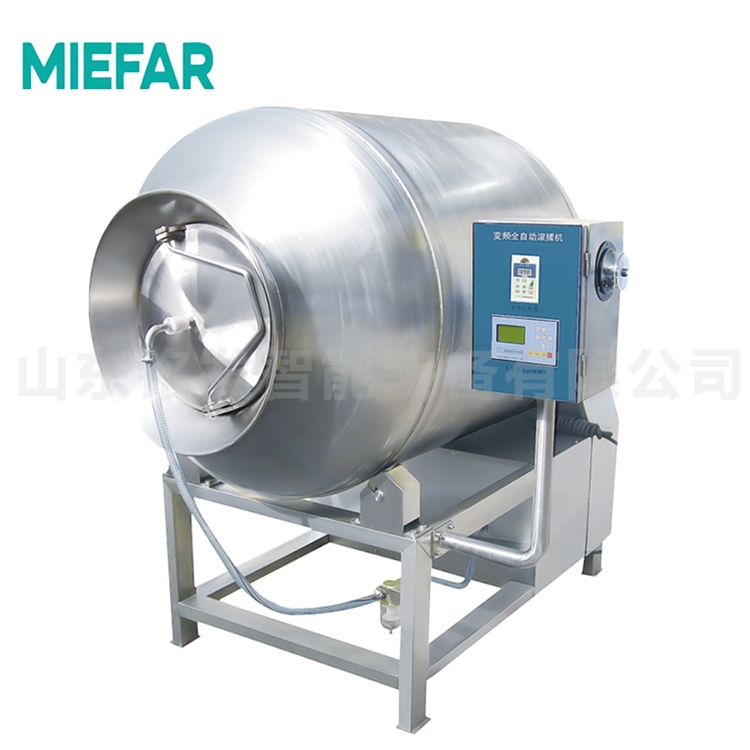

The MGR-H series rolling and kneading machine adopts a horizontal and fixed bracket, with a compact structure. Suitable for pickling and processing Western style sausages, ham, bacon, grilled meat, as well as traditional Chinese poultry, sauce braised, and snack foods.

Technology and Applications

1. It has continuous vacuum function. There are two working conditions to choose from: vacuum rolling (fixed vacuum degree) and breathing rolling (alternating vacuum and atmospheric pressure); Equipped with a digital vacuum gauge to display the vacuum level of the rolling drum in real-time. The use of breathing kneading function can effectively shorten kneading time and improve kneading efficiency. The digital vacuum gauge is convenient for monitoring the vacuum condition at any time.

2. Adopting variable frequency stepless speed regulation, with a speed range of 2-12rpm (1-4 rpm low-speed function can be selected, some models have dual speed function selection), the optimal processing technology can be selected to improve production efficiency and save energy consumption;

3. Start smoothly, reduce the impact during machine startup, and extend the service life of the equipment. Choose the low-speed function to adapt to various rolling and deformation prone products, especially poultry and fish products.

4. Comprehensive feeding and unloading solutions.
Vacuum suction or a separate flip loading machine can be selected for loading according to the characteristics of different products.
The vacuum suction port can also serve as an auxiliary material addition port.
Roll and knead the bucket in reverse for automatic discharge.

5. Adopting PLC and human-machine interface control
Long term validation of highly reliable control systems, fully considering the convenience and intuitiveness of operation and monitoring; Good water and moisture resistance.
Work cycle mode: forward rolling - pause - reverse rolling - pause

6. High standard hygiene design
The whole machine is made of high-quality SUS304 stainless steel material;
The interior of the rolling drum is finely polished, and there is a cleaning port on the belly of the rolling drum, which can thoroughly clean the inside of the drum.

7. Adopting a water ring vacuum pump, equipped with a vacuum pipeline filter, and selecting high-quality vacuum sensors to improve the reliability of the vacuum system.

8. Optional“ V-shaped” And“ Single piece type; Paddles, with different rolling and kneading forces, adapt to different products.

Accessory selection function

MRC-500 suction truck

Capacity 500L, movable, connected through vacuum tube and rolling drum. It can accelerate the feeding efficiency, especially effective for larger meat pieces or meat fillings with low water content. You can choose to use a flip loading machine for loading.

2. Mobile flip loading machine

Used for special large pieces of beef or poultry products, aquatic products, and other raw materials that are not suitable for vacuum suction, for loading operations, can be directly matched with a standard 200L meat truck.

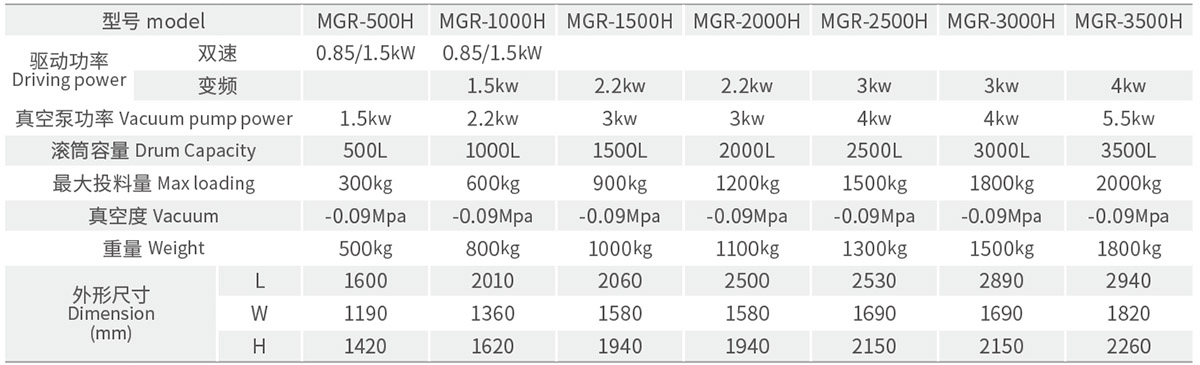

parameter table
